Specifications
Availability4 pcs
BrandINA

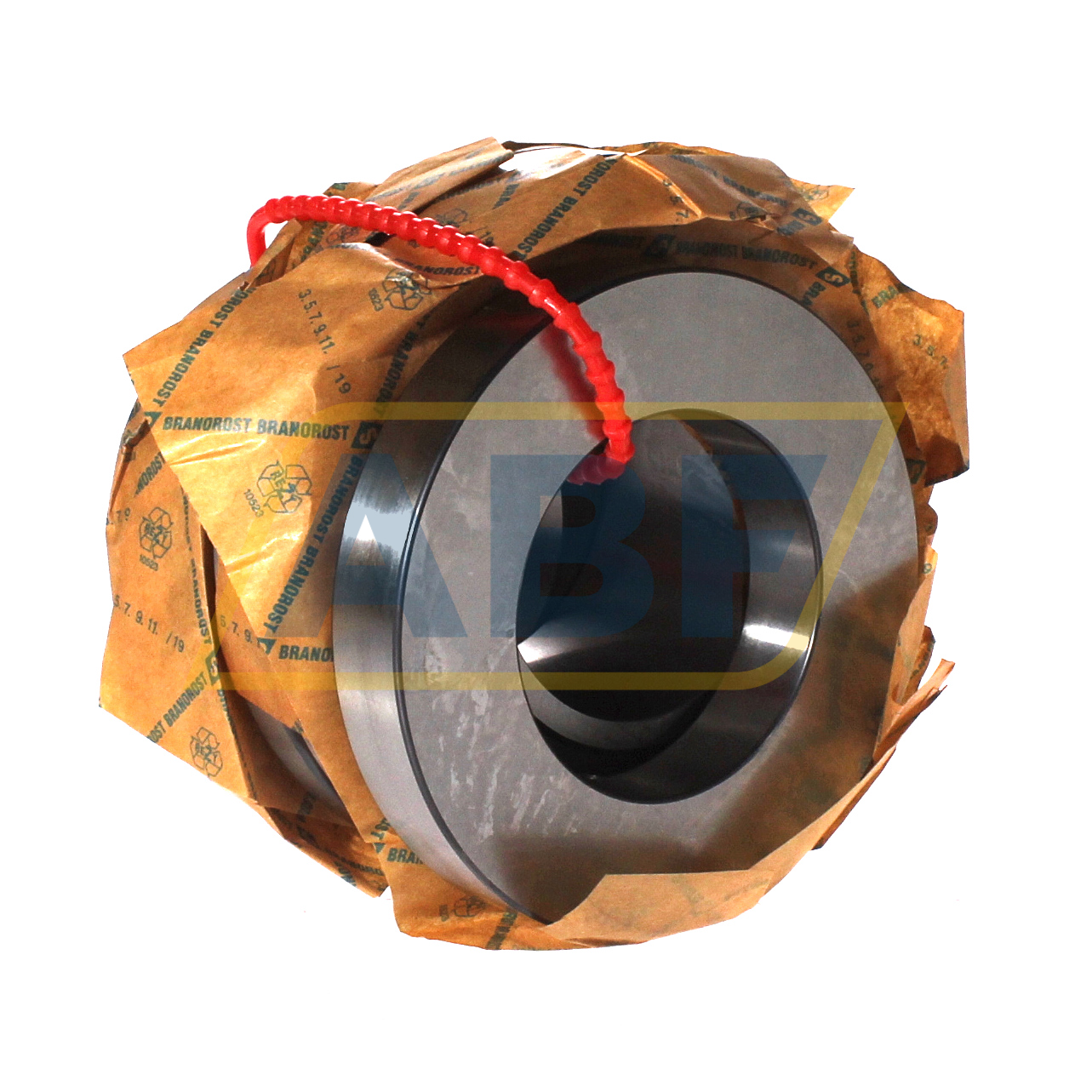

Item NumberZARN60120-TV-A INA
Manufacturer Part Number0016832760000
EAN4012802419887
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
60
Outer (D) MM
120
Width (B) MM
82
Inner (d) Inch
2.3622
Outer (D) Inch
4.7244
Width (B) Inch
3.2283
Weight (kg)
3.7
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Height (H) mm
82
Radial Static Load Rating C0r (N)
92000
Radial Dynamic Load Rating Cr (N)
44500
Axial Static Load Rating C0a (N)
550000
Axial Dynamic Load Rating Ca (N)
187000
Limiting speed for grease lubrication (n G Grease)
950
Limiting speed for oil lubrication (n G Oil)
2700
ECLASS number
23-05-12-90
ECLASS2 number
23-05-12-90
Medias description
Needle roller/axial cylindrical roller bearings ZARN, double direction
Suffix description
TVPolyamide Cage
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
